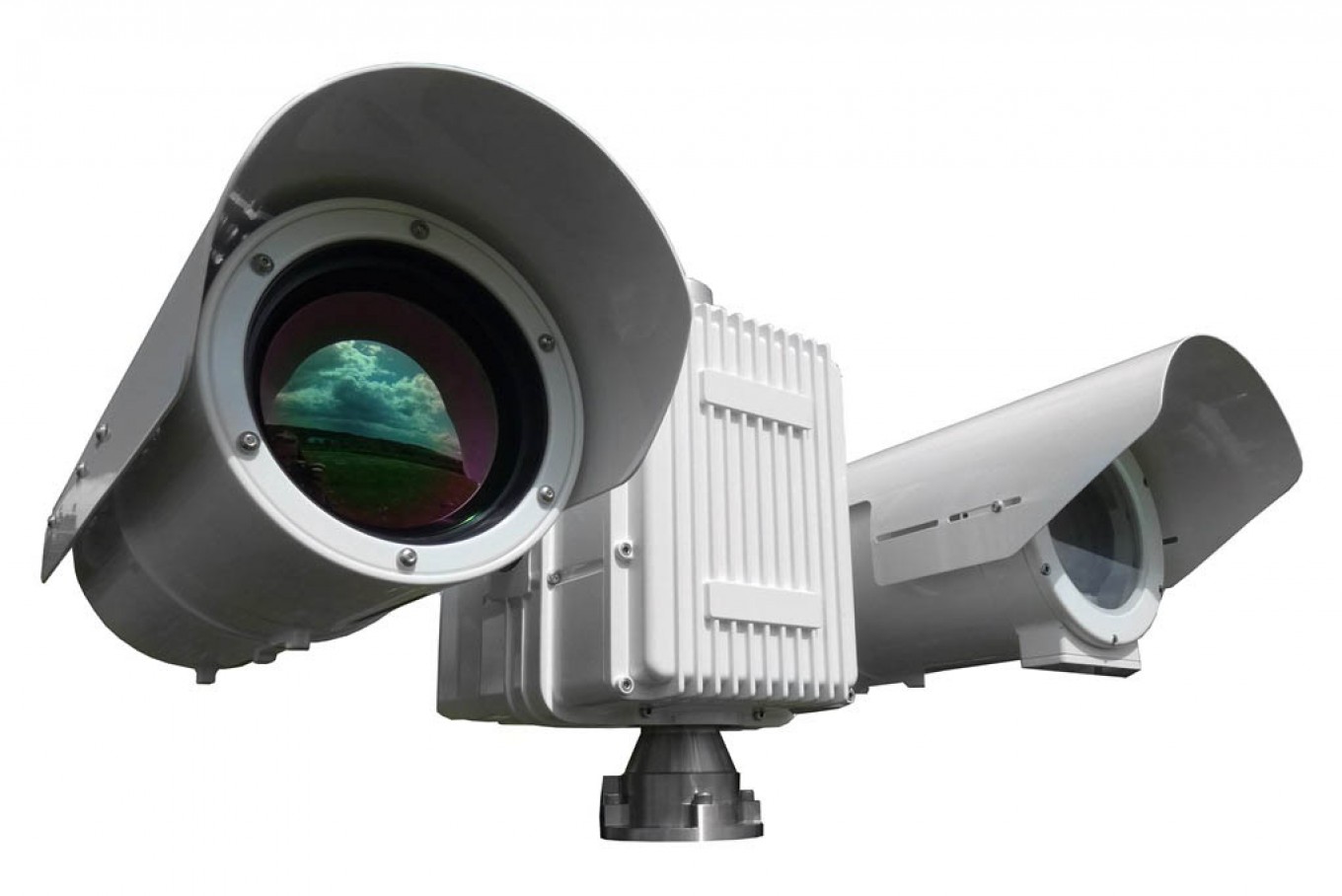

The Jaegar is a fully integrated, modular, multi-sensor, high powered PTZ platform. Capable of supporting uncooled (LWIR), cooled (MWIR), and cooled HD thermal cameras (with lens options up to 960mm), along with very long range low light HD / 4K visible cameras and a through shaft to allow for radar mounting.
Jaeger camera platforms
- Jaeger Ranger:
- Uncooled thermal (LWIR) camera, 640 x 480 pixels, 17µm pitch
- Up to a 225mm zoom IR lens
- HD visible camera with a 33:1, 15.2-500mm lens
- Wiper
- Jager Ranger LR:
- Uncooled thermal (LWIR) camera, 640 x 480 pixels, 12µm pitch
- Up to a 300mm zoom IR lens
- HD visible camera with a 33:1, 15.2-500mm lens
- Wiper
- Jaeger Searcher:
- Cooled thermal (MWIR) camera, 640 x 512 pixels, 15µm pitch
- Up to a 900mm zoom IR lens
- HD visible camera with a 60:1, 16.7-1000mm lens
- 33.4 2000mm with the 2x extender
- Wiper
- Jaeger ULR:
- Cooled thermal (MWIR) HD thermal camera, 1280 x 720 pixels, 12µm pitch
- 80-960mm zoom IR lens
- HD visible camera with a 60:1, 16.7-1000mm
- 33.4 2000mm with the 2x extender
- Wiper
- Jager Sonus:
- Modular, highly directional acoustic hailing device, capable of precise delivery of LR sound (speech) and illumination.
- Optional with a lowlight HD video camera or various thermal cameras for detection and night-time operation.
- An optional zoomable spotlight aids nightime operation and can add to the deterrent effect of the system
